VRC.SDK3.Image.VRCImageDownloader.ImageDownloader Class Reference

Inheritance diagram for VRC.SDK3.Image.VRCImageDownloader.ImageDownloader:

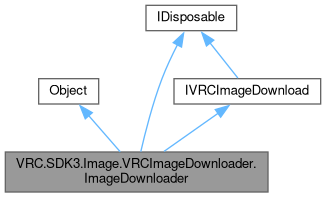

Collaboration diagram for VRC.SDK3.Image.VRCImageDownloader.ImageDownloader:

Classes
struct	d
struct	d__51
struct	d__52
struct	ImageInfo
struct	ImageLoadSettings
struct	ImageResult

Public Types
enum	ImageError : Enum
enum	ImageFormat : Enum
enum	ImageLoadSettingsFlags : Enum

Public Member Functions
	ImageDownloader (VRCUrl url, Material material, IUdonEventReceiver udonBehaviour=null, TextureInfo textureInfo=null)
virtual void	StartDownload ()
void	Dispose ()
void	CancelDownload ()
void	StartDownload ()
void	CancelDownload ()

Static Public Member Functions
static IVRCImageDownload	DownloadImage (VRCUrl url, Material material, IUdonEventReceiver udonBehaviour, TextureInfo textureInfo)

Protected Member Functions
UniTask	DownloadImage (Uri uri, CancellationToken cancellationToken)

Static Package Functions
static UniTask< DownloadImage >	g__SlicedTextureUpload (int width, int height, int bytesPerPixel, TextureFormat format, int mipLevel, NativeSlice< byte > outputBuffer, Texture2D outputTexture)

Properties
VRCImageDownloadState	State [get, protected set]
VRCImageDownloadError	Error [get, protected set]
string	ErrorMessage [get, protected set]
Texture2D	Result [get, protected set]
int	SizeInMemoryBytes [get]
float	Progress [get, protected set]
VRCUrl	Url [get, protected set]
Material	Material [get, protected set]
IUdonEventReceiver	UdonBehaviour [get, protected set]
TextureInfo	TextureInfo [get, protected set]
Properties inherited from VRC.SDK3.Image.IVRCImageDownload
VRCImageDownloadState	State [get]
VRCImageDownloadError	Error [get]
string	ErrorMessage [get]
Texture2D	Result [get]
int	SizeInMemoryBytes [get]
float	Progress [get]
VRCUrl	Url [get]
Material	Material [get]
IUdonEventReceiver	UdonBehaviour [get]
TextureInfo	TextureInfo [get]

Private Member Functions
static ImageResult	LoadImage (System.IntPtr inputBytes, uint inputBytesLength, System.IntPtr outputBuffer, uint outputBufferLength, ImageLoadSettings settings)
void	SetProgress (float progress)
UniTask	RunUdonEventOnMainThreadAndRemoveFromQueue (string eventName, ValueTuple< string, object > argument)
	~ImageDownloader ()

Static Private Attributes
const string	NATIVE_LIB = "vrc_image_loader"
const float	MINIMUM_DELAY_BETWEEN_REQUESTS = 5f
const int	MAXIMUM_DIMENSION = 2048
const int	MAX_BUFFER_SIZE = 33554432
const int	SLICE_SIZE_BYTES = 1048576

Detailed Description

Definition at line 2847 of file VRCSDK3.cs.

Member Enumeration Documentation

ImageError

enum VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.ImageError : Enum

Definition at line 2850 of file VRCSDK3.cs.

ImageFormat

enum VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.ImageFormat : Enum

Definition at line 2868 of file VRCSDK3.cs.

ImageLoadSettingsFlags

enum VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.ImageLoadSettingsFlags : Enum

Definition at line 2903 of file VRCSDK3.cs.

Constructor & Destructor Documentation

ImageDownloader()

VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.ImageDownloader	(	VRCUrl	url,
		Material	material,
		IUdonEventReceiver	udonBehaviour = null,
		TextureInfo	textureInfo = null
	)

Definition at line 4297 of file VRCSDK3.cs.

~ImageDownloader()

VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.~ImageDownloader ( )

private

Definition at line 4442 of file VRCSDK3.cs.

Here is the call graph for this function:

Member Function Documentation

CancelDownload()

void VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.CancelDownload

(

)

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4432 of file VRCSDK3.cs.

Dispose()

void VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.Dispose

(

)

Definition at line 4395 of file VRCSDK3.cs.

Here is the call graph for this function:

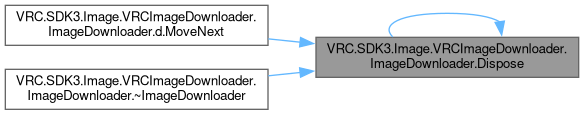

Here is the caller graph for this function:

DownloadImage() [1/2]

UniTask VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.DownloadImage ( Uri  uri, CancellationToken  cancellationToken  )

protected

Definition at line 4360 of file VRCSDK3.cs.

Here is the call graph for this function:

DownloadImage() [2/2]

static IVRCImageDownload VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.DownloadImage ( VRCUrl  url, Material  material, IUdonEventReceiver  udonBehaviour, TextureInfo  textureInfo  )

static

Definition at line 4292 of file VRCSDK3.cs.

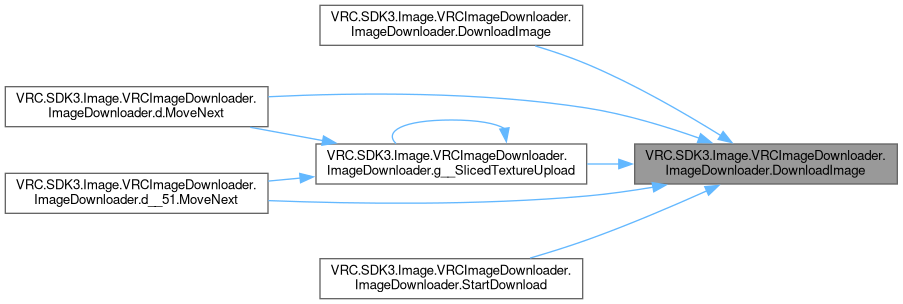

Here is the caller graph for this function:

g__SlicedTextureUpload()

static UniTask< DownloadImage > VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.g__SlicedTextureUpload ( int  width, int  height, int  bytesPerPixel, TextureFormat  format, int  mipLevel, NativeSlice< byte >  outputBuffer, Texture2D  outputTexture  )

staticpackage

Definition at line 4456 of file VRCSDK3.cs.

Here is the call graph for this function:

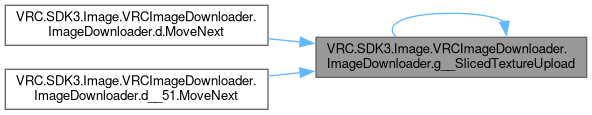

Here is the caller graph for this function:

LoadImage()

static ImageResult VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.LoadImage ( System.IntPtr  inputBytes, uint  inputBytesLength, System.IntPtr  outputBuffer, uint  outputBufferLength, ImageLoadSettings  settings  )

private

Here is the caller graph for this function:

RunUdonEventOnMainThreadAndRemoveFromQueue()

UniTask VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.RunUdonEventOnMainThreadAndRemoveFromQueue ( string  eventName, ValueTuple< string, object >  argument  )

private

Definition at line 4378 of file VRCSDK3.cs.

Here is the call graph for this function:

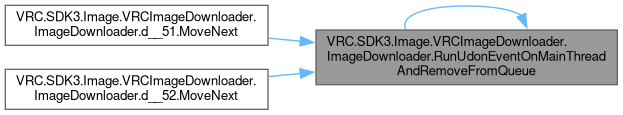

Here is the caller graph for this function:

SetProgress()

void VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.SetProgress ( float  progress )

private

Definition at line 4354 of file VRCSDK3.cs.

Here is the caller graph for this function:

StartDownload()

virtual void VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.StartDownload ( )

virtual

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4308 of file VRCSDK3.cs.

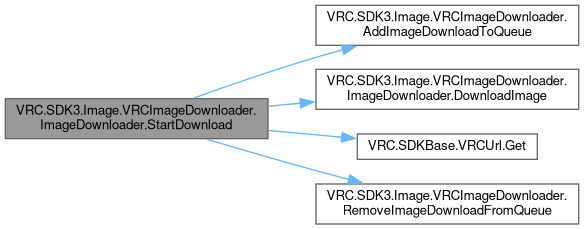

Here is the call graph for this function:

Member Data Documentation

MAX_BUFFER_SIZE

const int VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.MAX_BUFFER_SIZE = 33554432

staticprivate

Definition at line 4186 of file VRCSDK3.cs.

MAXIMUM_DIMENSION

const int VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.MAXIMUM_DIMENSION = 2048

staticprivate

Definition at line 4184 of file VRCSDK3.cs.

MINIMUM_DELAY_BETWEEN_REQUESTS

const float VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.MINIMUM_DELAY_BETWEEN_REQUESTS = 5f

staticprivate

Definition at line 4182 of file VRCSDK3.cs.

NATIVE_LIB

const string VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.NATIVE_LIB = "vrc_image_loader"

staticprivate

Definition at line 4180 of file VRCSDK3.cs.

SLICE_SIZE_BYTES

const int VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.SLICE_SIZE_BYTES = 1048576

staticprivate

Definition at line 4188 of file VRCSDK3.cs.

Property Documentation

Error

VRCImageDownloadError VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.Error

getprotected set

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4206 of file VRCSDK3.cs.

ErrorMessage

string VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.ErrorMessage

getprotected set

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4215 of file VRCSDK3.cs.

Material

Material VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.Material

getprotected set

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4263 of file VRCSDK3.cs.

Progress

float VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.Progress

getprotected set

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4245 of file VRCSDK3.cs.

Result

Texture2D VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.Result

getprotected set

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4224 of file VRCSDK3.cs.

SizeInMemoryBytes

int VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.SizeInMemoryBytes

get

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4232 of file VRCSDK3.cs.

State

VRCImageDownloadState VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.State

getprotected set

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4197 of file VRCSDK3.cs.

TextureInfo

TextureInfo VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.TextureInfo

getprotected set

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4281 of file VRCSDK3.cs.

UdonBehaviour

IUdonEventReceiver VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.UdonBehaviour

getprotected set

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4272 of file VRCSDK3.cs.

Url

VRCUrl VRC.SDK3.Image.VRCImageDownloader.ImageDownloader.Url

getprotected set

Implements VRC.SDK3.Image.IVRCImageDownload.

Definition at line 4254 of file VRCSDK3.cs.

---

The documentation for this class was generated from the following file:

• /github/workspace/DecompiledSource/VRCSDK3.cs
